Victron Blue Smart IP65 Charger 12V 5A

Description

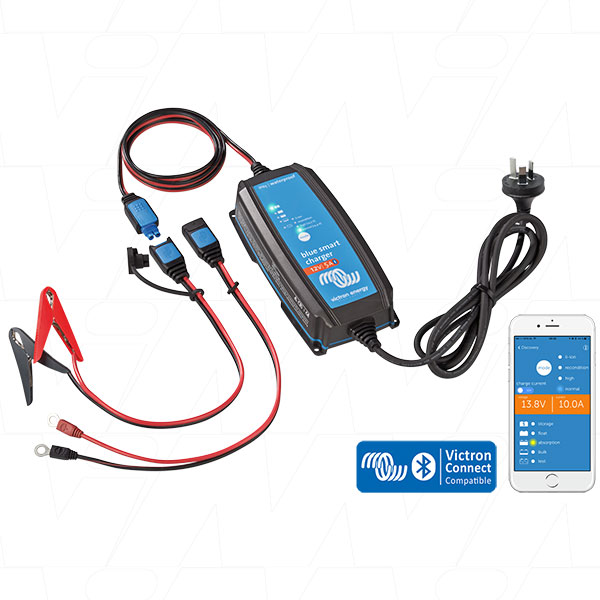

Victron Blue Smart IP65 Battery Charger 12V 5A (BPC120533014R)

Model: VECIP65-12/5

FREE Delivery (Australia Wide) With tracking.

Blue Smart IP65 Charger range, with Bluetooth connectivity and control via the VictronConnect app. If it has a battery, be Blue Smart and get connected!

Now you can look after your car, motorcycle, boat, jet ski, or any other application you have in style, but of course it doesn’t t stop there. Blue Smart is great for your workshop, motor home, caravan, any wheeled vehicle, in fact, anywhere you have a battery that needs tender loving care, all controlled directly from your Smartphone, tablet or computer using the VictronConnect app.

Blue Smart Features

The key features of the new Blue Smart IP65 Charger range are:

• Water, dust and chemical resistant
• Seven step smart charge algorithm with up to 95% efficiency
• Includes pre-set charge algorithms perfectly set for all common Lead Acid including AGM and Lithium Phosphate batteries.
• User definable “Expert Mode” to alter pre-sets to suit battery manufacturer technical specifications.
• Low thermal stress on electrical components for long-term reliability
• Recovery of fully discharged ‘dead’ batteries & partially reverse sulfation
• Automatic power supply function
• Severe cold performance: down to -30°C
• Several other battery life enhancing features
• Low power mode to charge smaller batteries
• LiIon (LiFePO4) battery mode featuring a specific charging algorithm with Under-voltage protection
• Setup and configure, readout of voltage and current by Bluetooth Smart
• View in-depth historical charge – cycle history for the connected battery.
• Reverse Polarity, Short Circuit & Over Temperature protection
• Operating Temperatures: -30 to +50 deg Celsius
• May also be used as a power supply. Power supply mode is available via the BluetoothSmart app.

Smart 7 Step Charging Program

The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains health, ensures better performance and a longer life.

Deep Discharge Recovery

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

Easy Battery Connection

The charger comes with both crocodile clips and M8 eyelets – making it easy to connect to the battery. If you wish, you can leave it permanently connected.

Remote Monitoring

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.

VictronConnect

VictronConnect lets you get live status info and configure Victron products with built-in Bluetooth support or using VE.Direct Bluetooth Smart dongle.

Specifications

Blue Smart IP65 Charger 12V 5A
Input Voltage Range	180-265 VAC
Efficiency	94%
Standby Power Consumption	0.5W
Charge Voltage ‘Absorption’	Normal: 14.4V, High: 14.7V, Li-Ion: 14.2V
Charge Voltage ‘Float’	Normal: 13.8V, High: 13.8V, Li-Ion: 13.5V
Charge Voltage ‘Storage’	Normal: 13.2V, High: 13.2V, Li-Ion: 13.5V
Charge Current	5A
Low Current Mode	2A
Temperature Compensation (Lead-Acid Batteries Only)	16 mV/ C
Can be used as a power supply	Yes
Back Current Drain	0.7Ah/month (1 mA)
Protection	Reverse polarity, output short circuit, over temperature
Operating Temperature Range	-30 to +50 C (full rated output up to 30 C, cables retain flexibility at low temperature)
Humidity (non-condensing)	Max 95%

Dimensions

Blue Smart IP65 Charger 12V 5A
Length	182mm
Width	81mm
Height	45mm

Enclosure

Blue Smart IP65 Charger 12V 5A
Battery-connection	Black and red cable of 1.5m with 20A DC connector, clamps and M8 eyelets
230V AC-connection	Cable of 1.5m with AS/NZS 3112 plug
Protection category	IP65 (splash and dust proof)
Weight	0.9kg
